DBPix Documentation
Version 2.0

Runtime User-Interface


Cursors

NoneNo Action.
PanClick and drag to pan the around the image.
Zoom In[Shift pressed] Click to zoom in by 2:1, centering on the point clicked.
Zoom Out[Ctrl pressed] Click to zoom out by 1:2, centering on the point clicked.

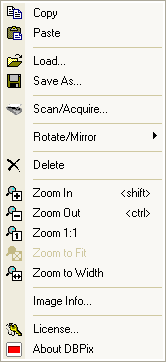

Context Menu

Copy  Copies the current image to the clipboard.
Paste  Pastes an image from the clipboard (if available), replacing the current image.
Load  Loads a new image from the filesystem.
Save As...  Save the current image to a file.
Rotate/Mirror  Supports rotating the image in multiples of 90 degrees, or horizontal and vertical mirroring.
Delete  Deletes/clears the current image.
Zoom In  Zooms in to the center of the image by a factor of 2.
Zoom Out  Zooms out by a factor of 2.
Zoom to Fit  Zooms the image to fit entirely inside the area of the control.
Zoom to Width  Zooms to fit the width of the image inside the control.
Zoom to Height  Zooms to fit the height of the image inside the control.
Image Info  Shows or Hides the Image Info window, which displays image and EXIF information.
License...  Displays the license key dialog, for entering a developer's license key (this menu item is hidden when redistributing an application).
About DBPix  Displays the about dialog, containing version and other info about DBPix (this menu item is hidden when redistributing an application).







Documentation version 2.0.0
